Currently there are so many quality products on the market, The FSP SPARKLE FSP300-60ATV 300W ATX Power Supply is one that is worth buying. The FSP SPARKLE FSP300-60ATV 300W ATX Power Supply is a excellent product and we are pleased with its quality. Most reviewers who have tried this product are very satisfied. They are also amazed at how affordable the price is and yet does not lack quality features.

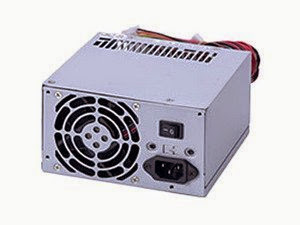

FSP SPARKLE FSP300-60ATV 300W ATX Power Supply Features
Please read product description before you decide to buy this product or click here for more details.
- FSP SPARKLE FSP300-60ATV 300W ATX Power Supply, support Norco rackmount cases, such as RPC-230, RPC-250, RPC-270, RPC-430, RPC-450, RPC-470.......
- Feature: Complied with ATX12V 2.0 standard High efficiency, low noise and ripple and reliability Remote On/Off function Internal 80mm 12V DC fan included Noise Killer (Thermal fan speed control function) Complies with FCC part 15 subpart J Class B and CISPR 22 Class B Output over voltage, short circuit, and over current protection 100% Hi-pot, ATE, and burn-in tested Re-settable power shut down Approved by UL 60950, TUV, IEC 60950, NEMKO (CB Report) Included On/Off Switch Input: Input Range: ±10% of 115Vrms/57~ 63Hz, ±10% of 230Vrms/47~ 53Hz, manual selection. Input Current: 7A (RMS) @ 115Vrms/60Hz, 4A (RMS) @ 230Vrms/50Hz Inrush Current: 80A Max cold start, 100A Max warm start measured at 115Vrms/60Hz Output: Total Output: 300W +3.3V and +5V total output not exceed 120W +3.3V is load on 20A then +5V maximum load is 10.8A; +5V is load on 20A then +3.3V maximum load is 6A +12V1+12V2 total output not exceed 264W +3.3V, +5V, +12V1, and +12V2 total output not exceed 286W Connectors: 20/24pin Main power; 4pin P4 power; 4x Peripheral; 1x SATA; 1x Floppy Dielectric Withstand: Input to frame ground 1800V AC for 1 second Insulation Resistance: 20 Meg. Ohm Min. Efficiency: 70% minimum measured at nominal AC main voltage with maximum load on all outputs Rise Time: Less than 20mS on all outputs Hold-up Time: 12ms minimum at 115V/230VAC Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current: Not exceed 3.5mA MTBF:100,000 hours on maximum load at +25°C Dimension (WxLxH): 6 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
Product Description
Feature:
Complied with ATX12V 2.0 standard
High efficiency, low noise and ripple and reliability
Remote On/Off function
Internal 80mm 12V DC fan included
Noise Killer (Thermal fan speed control function)
Complies with FCC part 15 subpart J Class B and CISPR 22 Class B
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shut down
Approved by UL 60950, TUV, IEC 60950, NEMKO (CB Report)
Included On/Off Switch
Input:
Input Range: ±10% of 115Vrms/57~ 63Hz, ±10% of 230Vrms/47~ 53Hz, manual selection.
Input Current: 7A (RMS) @ 115Vrms/60Hz, 4A (RMS) @ 230Vrms/50Hz
Inrush Current: 80A Max cold start, 100A Max warm start measured at 115Vrms/60Hz
Output:
Total Output: 300W
+3.3V and +5V total output not exceed 120W
+3.3V is load on 20A then +5V maximum load is 10.8A; +5V is load on 20A then +3.3V maximum load is 6A
+12V1+12V2 total output not exceed 264W
+3.3V, +5V, +12V1, and +12V2 total output not exceed 286W
Connectors: 20/24pin Main power; 4pin P4 power; 4x Peripheral; 1x SATA; 1x Floppy
Dielectric Withstand: Input to frame ground 1800V AC for 1 second
Insulation Resistance: 20 Meg. Ohm Min.
Efficiency: 70% minimum measured at nominal AC main voltage with maximum load on all outputs
Rise Time: Less than 20mS on all outputs
Hold-up Time: 12ms minimum at 115V/230VAC
Power Good Signal: Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible)
Leakage Current: Not exceed 3.5mA
MTBF:100,000 hours on maximum load at +25°C
Dimension (WxLxH): 6 x 5.5 x 3.4 inch / 150 x 140 x 86 mm
Cheap FSP SPARKLE FSP300-60ATV 300W ATX Power Supply
Cheap FSP SPARKLE FSP300-60ATV 300W ATX Power Supply
With so many deals out there, we certainly can't blame you for feeling confused. Luckily we have done some research to help you. If you would like to get this product at cheap prices, please follow the link above and get special offers for you.
Tags: Cheap Computer Power Supplies, Best Price, Computer Power Supplies For Sale, Best Deals, Best Computer Power Supplies Reviews
